Butt-weld pipe fittings manufacturer in India, WPB to super duplex
ASME B16.9 elbows, tees, reducers, caps, stub ends and MSS SP-97 olets, ½ inch to 48 inch, seamless and welded, in every grade from A234 WPB to titanium.
- Direct from the manufacturer, not a trader
- Every piece traceable to its mill certificate
- Third-party inspection welcome: any agency you name
- Reply from our estimation team, usually within one working day
Get a quick quote
Tell us the item, size, grade and quantity. We reply with price and delivery.
Trusted by plants and EPCs across India
- AM/NS India
- JSW Steel
- Hindustan Zinc
- Lloyds Engineering
- Utkal Alumina
- Cochin Shipyard

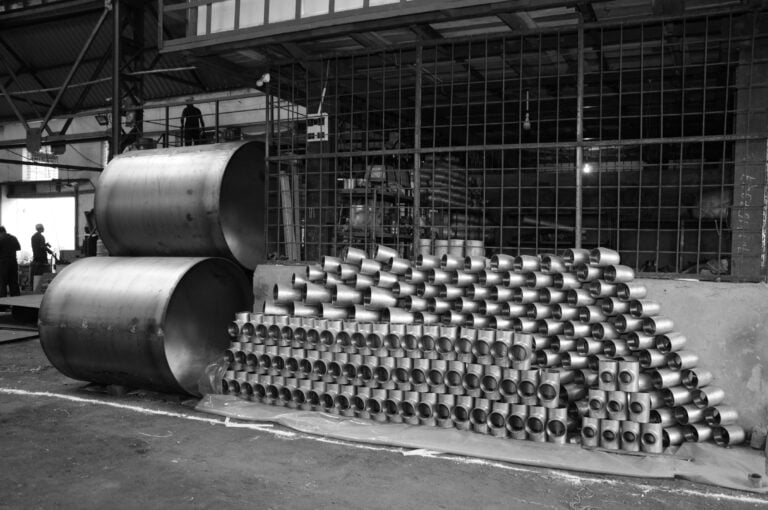

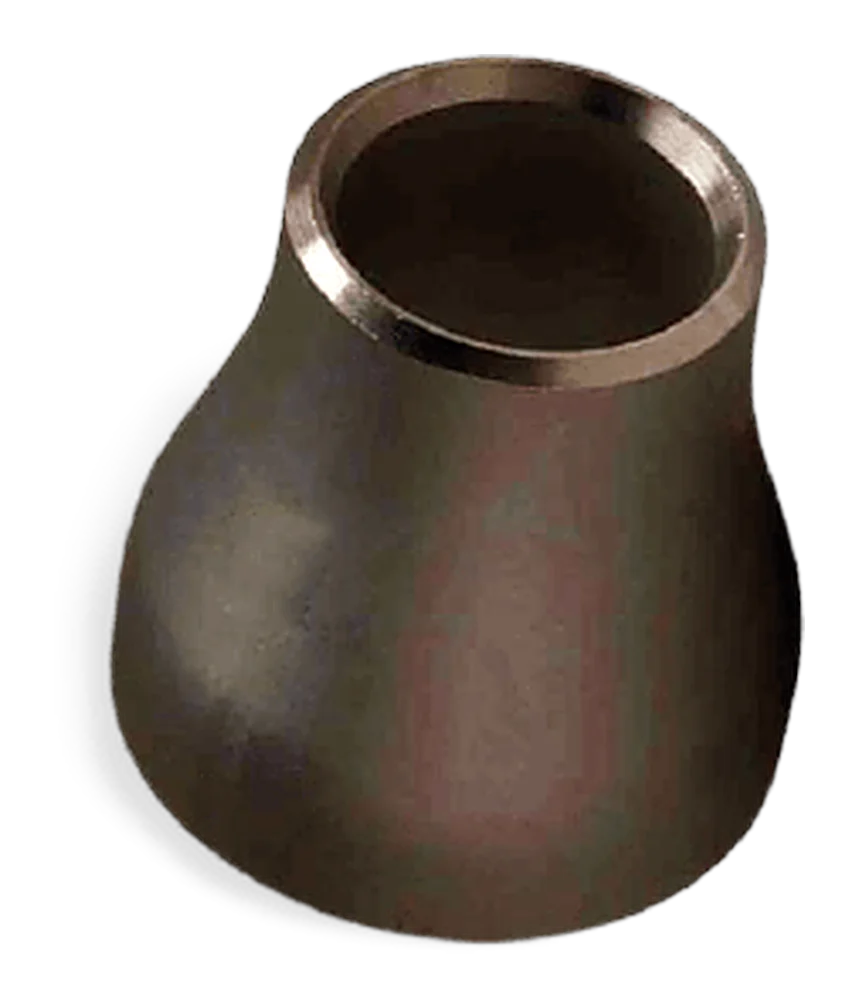

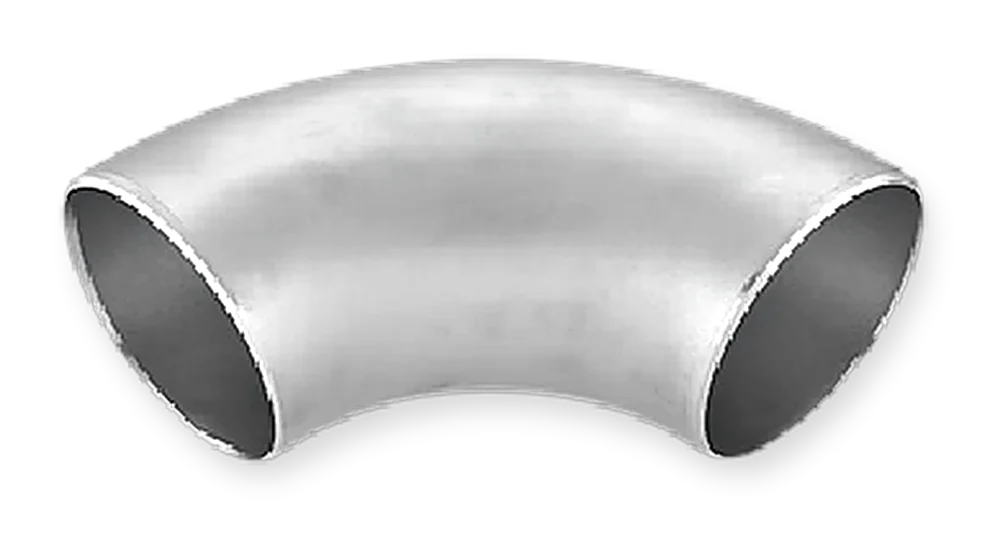

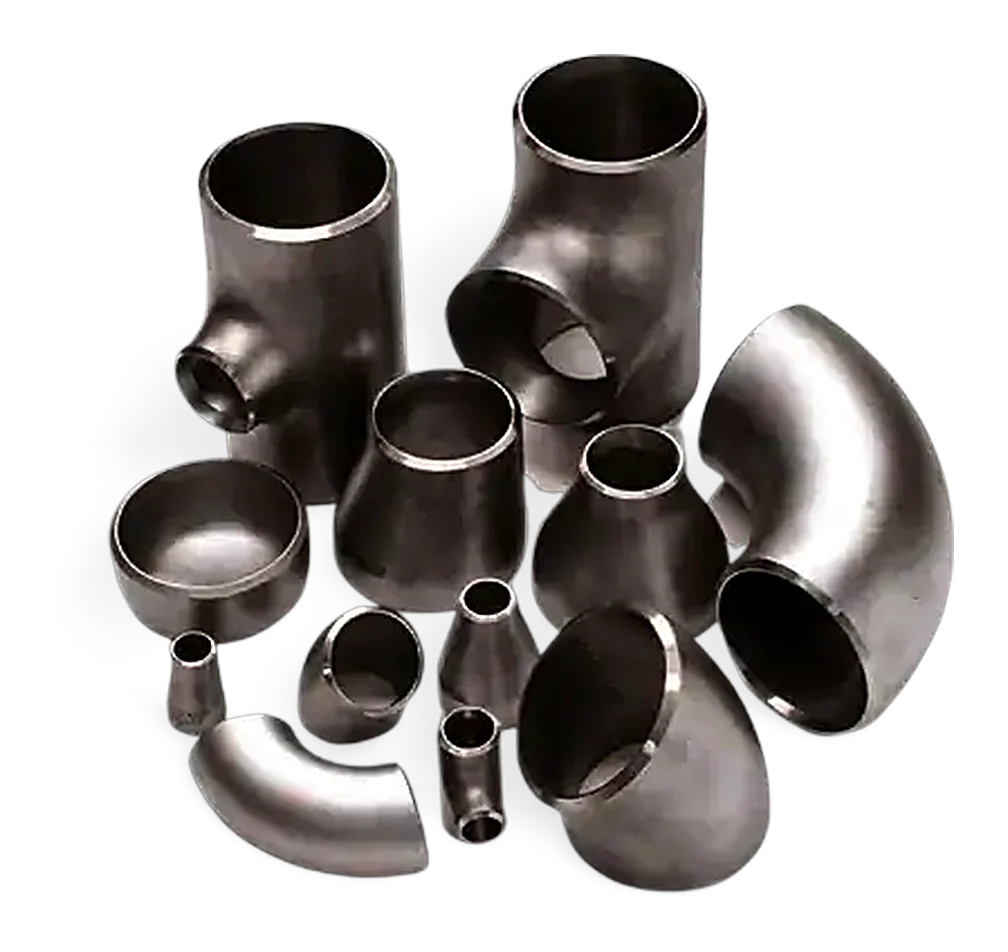

Fittings we manufacture
Every fitting is heat-number stamped and traceable to its mill certificate.
Why plant and EPC buyers choose Teshi
Direct from the manufacturer
You deal with the people who make it. No trader margin, no lost information between you and the shop floor.
Traceable to the heat
Every piece is marked and linked to its mill certificate. EN 10204 3.1 as standard, 3.2 when witnessed.
Every grade on one order
Carbon steel, alloy, stainless, duplex, nickel alloys and titanium, so a mixed BOQ goes to one supplier.
Inspection your way
Your QAP, your third-party agency, PMI and NDT as specified. Since 1971, ISO 9001:2015 certified and IBR approved.
Have a BOQ or drawing? Get a quotation from the manufacturer.
Send sizes, grades and quantities. Our estimation team usually replies within one working day.
Find any fitting dimension, explained on the drawing
Choose a fitting and size. A, B, C, M, H, E, G and F are marked on the drawing with the actual values.
Fitting dimension finder
Choose a fitting and size. The letters on the drawing show exactly what each ASME B16.9 dimension measures.
Dimensions in mm per ASME B16.9 (short stub end per MSS SP-43).
Grades
Carbon steel to titanium, so mixed-grade BOQs go on one order.
| Material | Fitting specification | Notes | |
|---|---|---|---|
| Carbon steel | ASTM A234 WPB, WPC | Seamless and welded | Quote |
| Low-temperature carbon steel | ASTM A420 WPL6, WPL3 | Impact tested to -46°C (WPL6) | Quote |
| High-yield pipeline | MSS SP-75 WPHY 42 to 70 | For API 5L line pipe | Quote |
| Chrome-moly | ASTM A234 WP5, WP9, WP11, WP22, WP91 | Normalised and tempered | Quote |
| Austenitic stainless | ASTM A403 WP304/304L, WP316/316L, WP321, WP347, WP310S | Class S, W and WX | Quote |
| Super-austenitic | ASTM A403 WP904L, WPS31254 (guide) | Seamless and welded | Quote |
| Duplex and super duplex | ASTM A815 WPS31803, WPS32205, WPS32750, WPS32760 (guide) | Ferrite and A923 tests on request | Quote |
| Titanium | ASTM B363 WPT1, WPT2, WPT7, WPT12 (guide) | Grade 5 on enquiry | Quote |
| Nickel alloys | ASTM B366 WPNCMC, WPNICMC, WPHC276, WPNC, WP20CB (guide) | Seamless and welded | Quote |
| Copper-nickel | 90/10 and 70/30 to EEMUA 146 or project spec (guide) | Seamless and welded | Quote |
Ends, marking, testing and packing
Ends and bevels
Bevelled to ASME B16.25, normally 37.5° ± 2.5° with a 1.6 mm root face, or to your weld-end detail. Wall thickness matched to the pipe schedule.
Marking
Each fitting is marked with Teshi mark, grade, size, schedule, heat number and standard, traceable to its material certificate.
Testing
- Dimensional and visual inspection
- PMI on alloy fittings
- RT of welded fittings (WX class), IGC for stainless
- Impact tests for WPL6 and WPHY
Finish and packing
Stainless and nickel alloys solution annealed, pickled and passivated. Carbon steel varnished or painted. Packed in wooden cases, seaworthy for export.
How every order is checked
ISO 9001:2015 certified and IBR approved. The same four checks apply to every order, whether it is a dozen pieces or a full project BOQ.
Raw material check
Mill certificates are checked against the purchase order, and heat numbers are logged when material arrives.
Traceable processing
Heat numbers carry through cutting, forging or forming, machining and welding, so every piece links back to its mill certificate.
Testing and inspection
Dimensional checks, PMI and the NDT your QAP calls for. Third-party inspection is arranged when you specify an agency.
Documents with dispatch
Material test certificates to EN 10204 3.1, or 3.2 when witnessed, with the inspection reports your contract asks for.
Shutdown or project schedule? Talk to the manufacturer.
Mixed grades, third-party inspection and urgent dispatch on one order.
How ordering works
Four steps, no surprises.
Send your requirement
BOQ, drawing or a single line by form, email or WhatsApp.
Get a clear quotation
Price, delivery and inspection plan, usually within one working day.
Approve and inspect
QAP and drawings approved; your inspector is welcome at every stage.
Dispatch with documents
Packed, marked and shipped with test certificates and reports.
Industries we supply

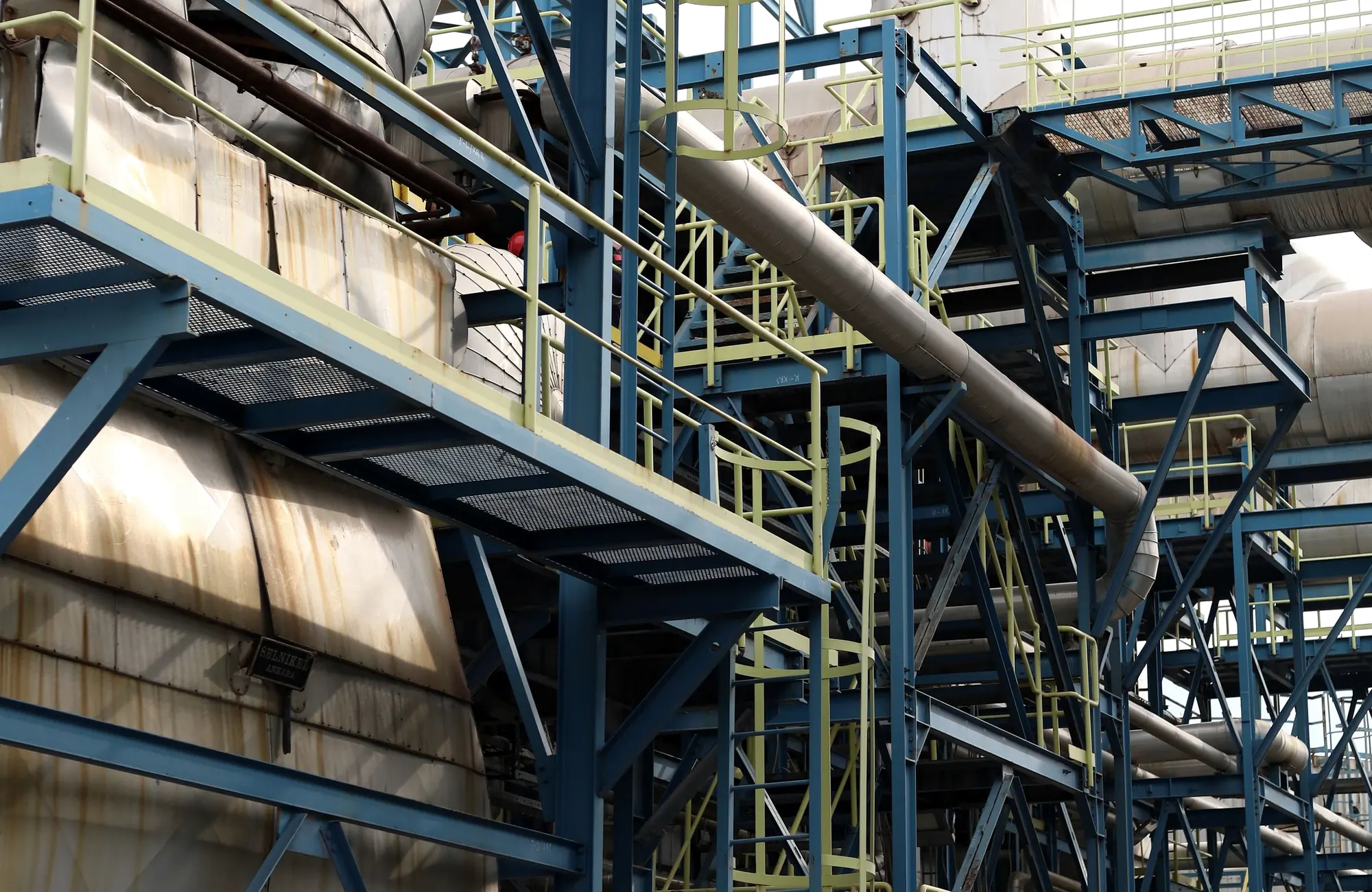

Steel plants
Blast furnace, utilities and process piping

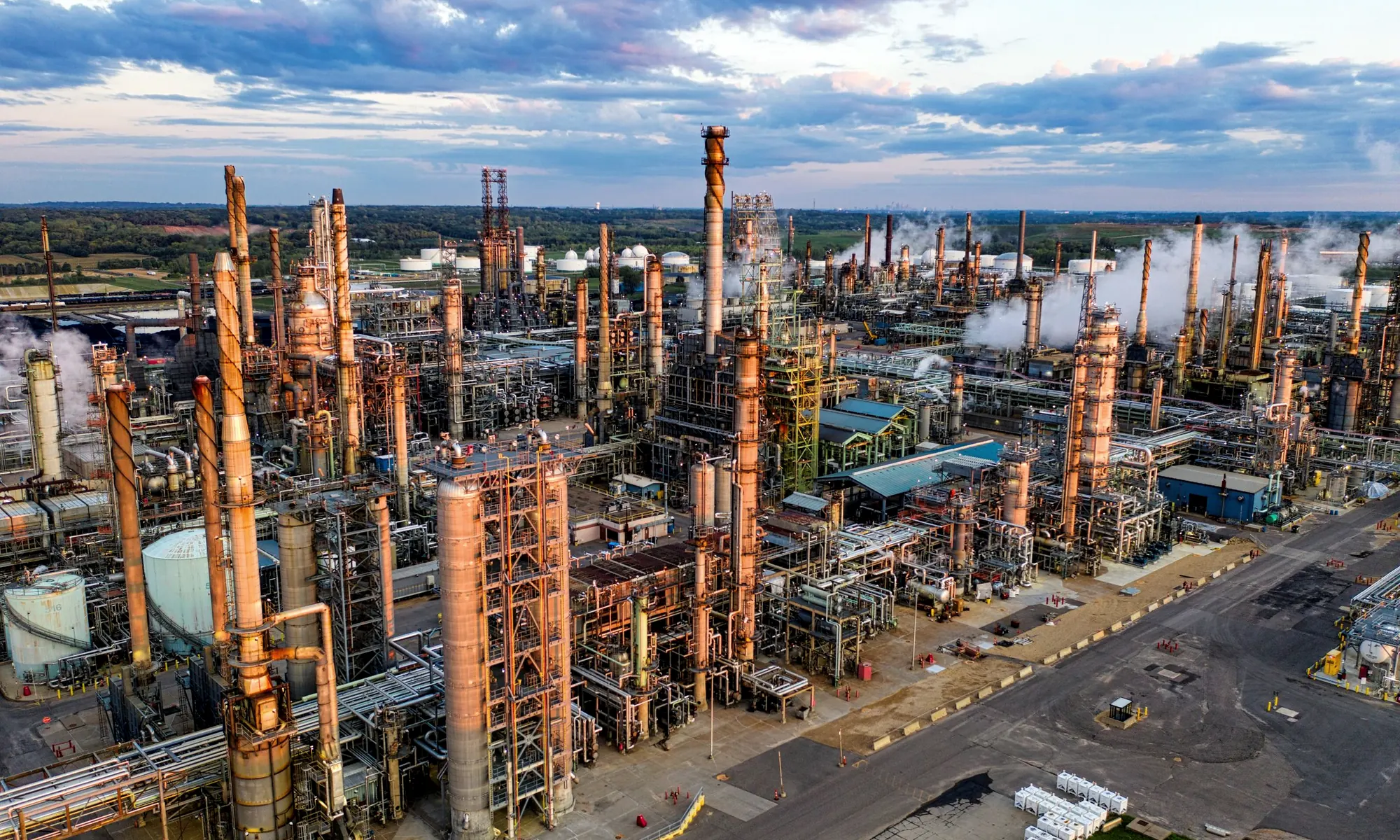

Smelters and chemicals
Acid plants, zinc, copper and alumina

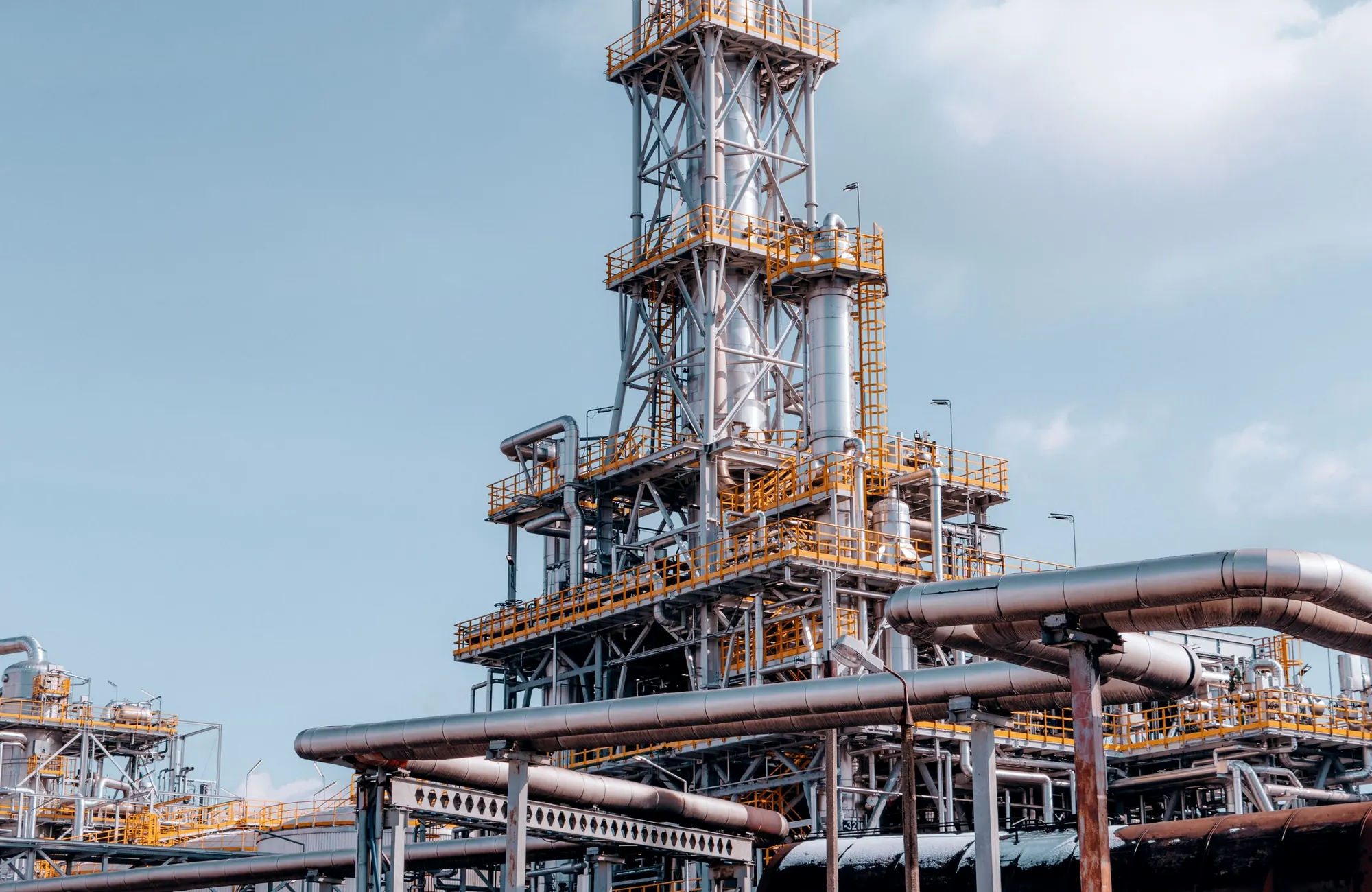

Oil, gas and power
Refineries, petrochemicals and power plants

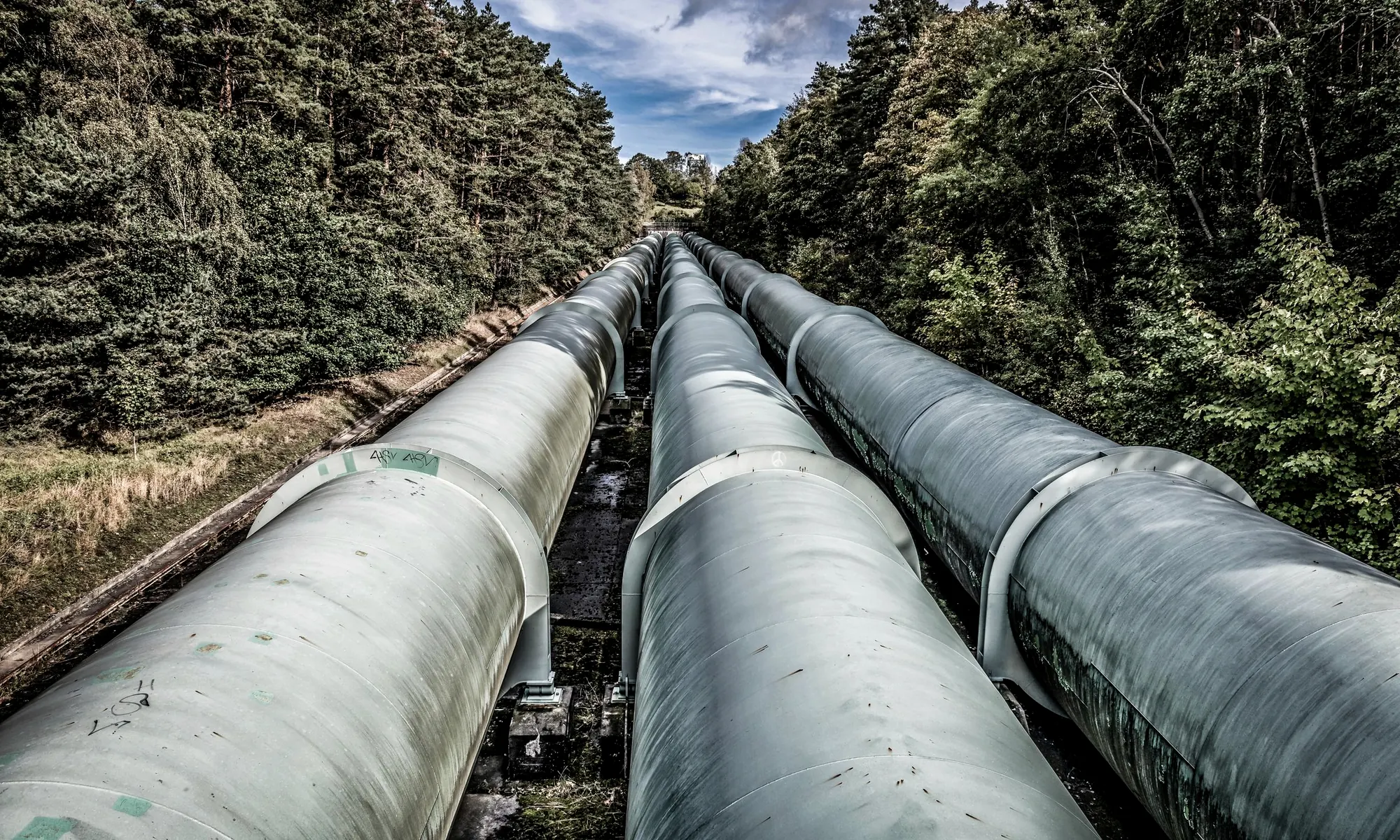

Water and infrastructure
Pipelines, cooling water and marine
Who we supply
Steel plants, non-ferrous smelters, shipyards and the EPC contractors who build for them. Most of our work is repeat business from these buyers.
- AM/NS IndiaHazira blast furnace packages
- Tata SteelSteel plant piping and flanges
- JSW SteelSteel plant piping and flanges
- SAILSteel plant supplies
- Jindal SteelDomestic and export flange orders
- Hindustan ZincDebari, Chanderiya and Kansariguda projects
- Utkal AluminaProcess plant supplies
- Larsen & ToubroEPC packages across metals and mining
- Lloyds Engineering WorksCarbon steel forged flanges
- Cochin ShipyardMarine piping components
- Summits HygronicsProcess equipment components
Complete your package with Teshi Group
Flanges, fittings, pipe, bolting and fabrication on one purchase order, with one set of documents.

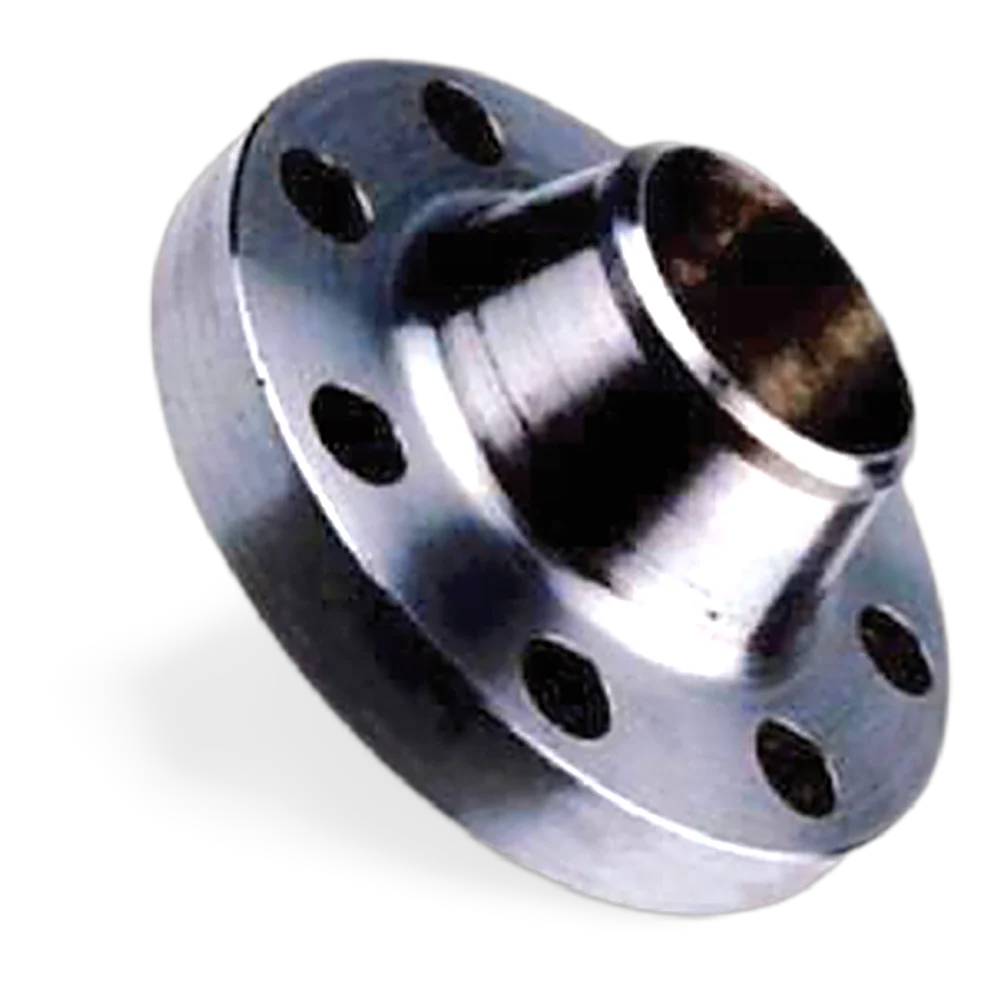

Teshi FittingsForged flanges to ASME B16.5, B16.47, EN 1092-1 and IS 6392, and B16.11 forged fittings

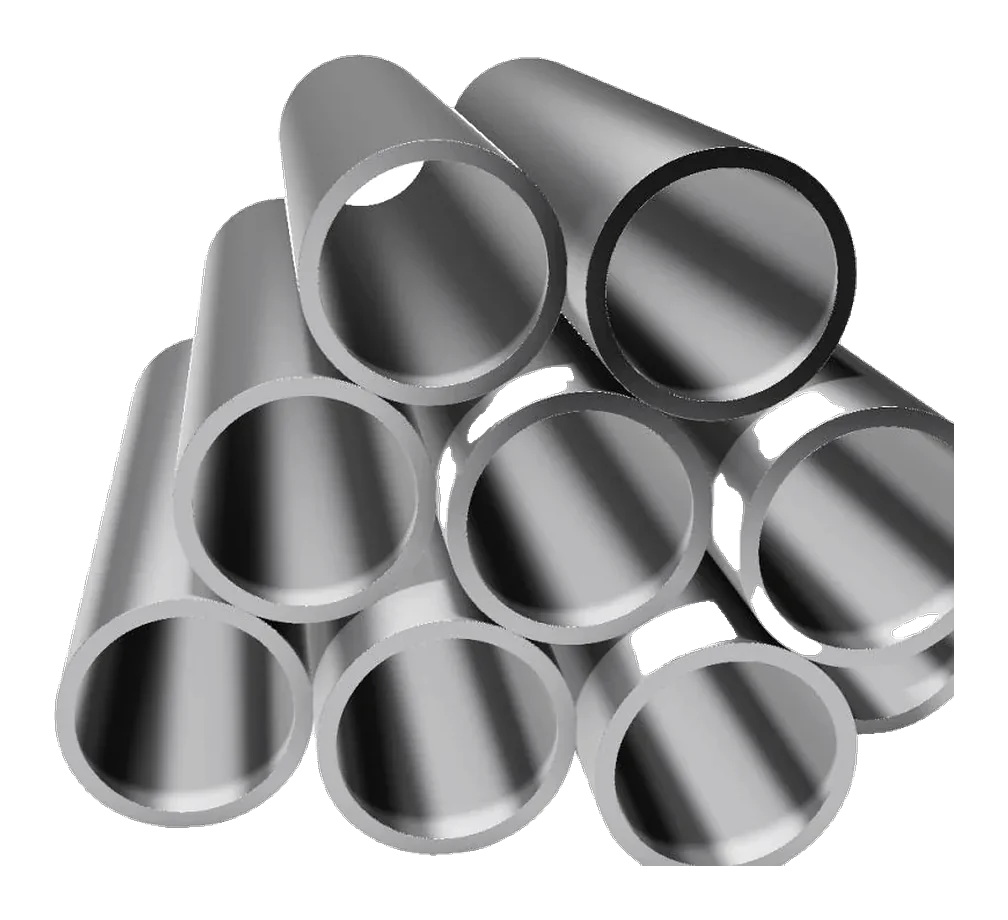

Teshi PipesSeamless and welded pipe in stainless, duplex, alloy, nickel and carbon steel

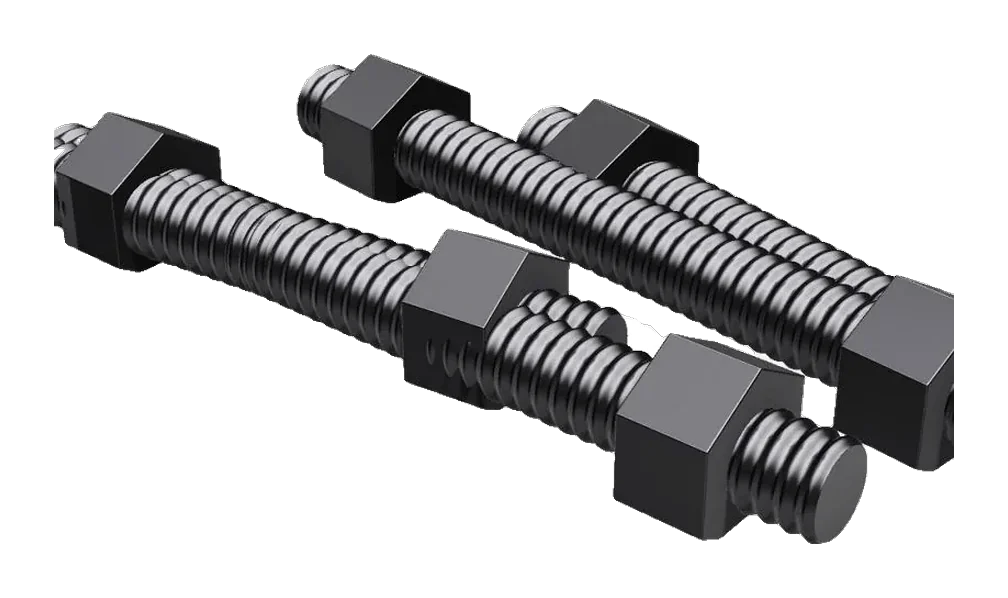

Teshi FastenersASTM A193, A194 and A320 stud bolts and nuts, plus exotic-alloy bolting

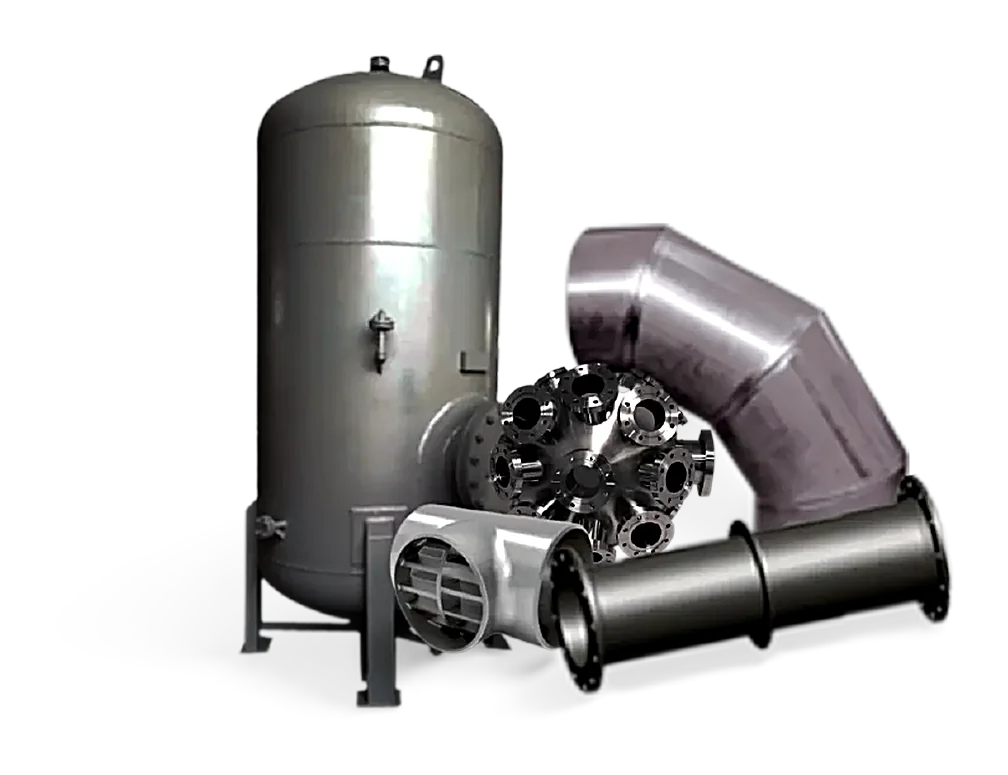

Teshi Heavy FabricationsBlast furnace nozzles, rolled pipe, ducts, mitre bends and plate flanges to drawing

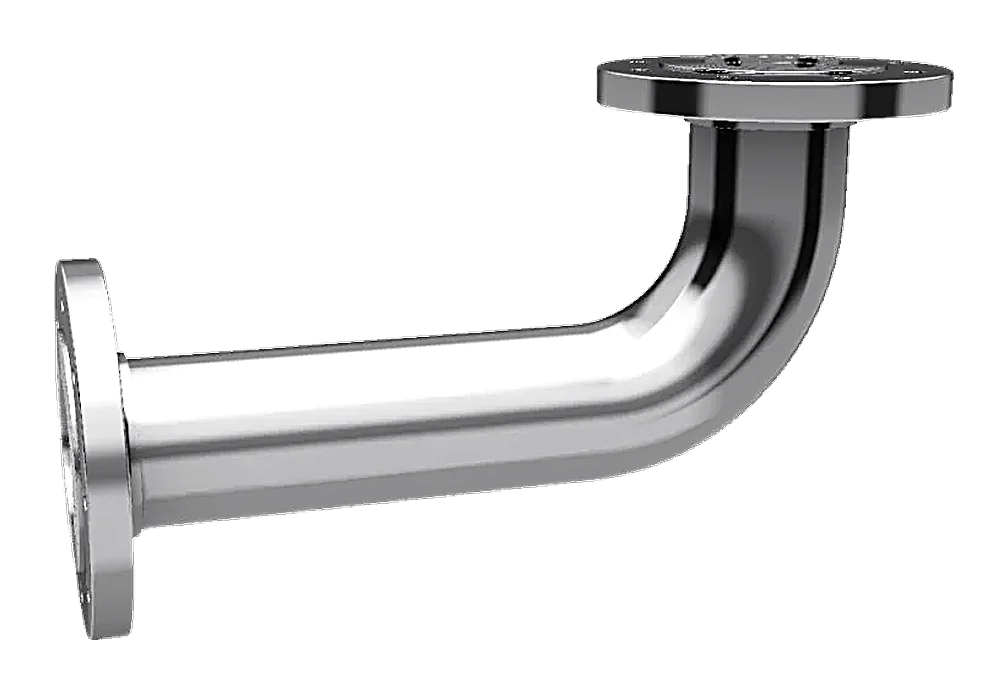

Teshi Process SolutionsPrefabricated pipe spools, acid-service piping and steam coils in corrosion-resistant alloysQuestions buyers ask
Do you manufacture butt-weld fittings?

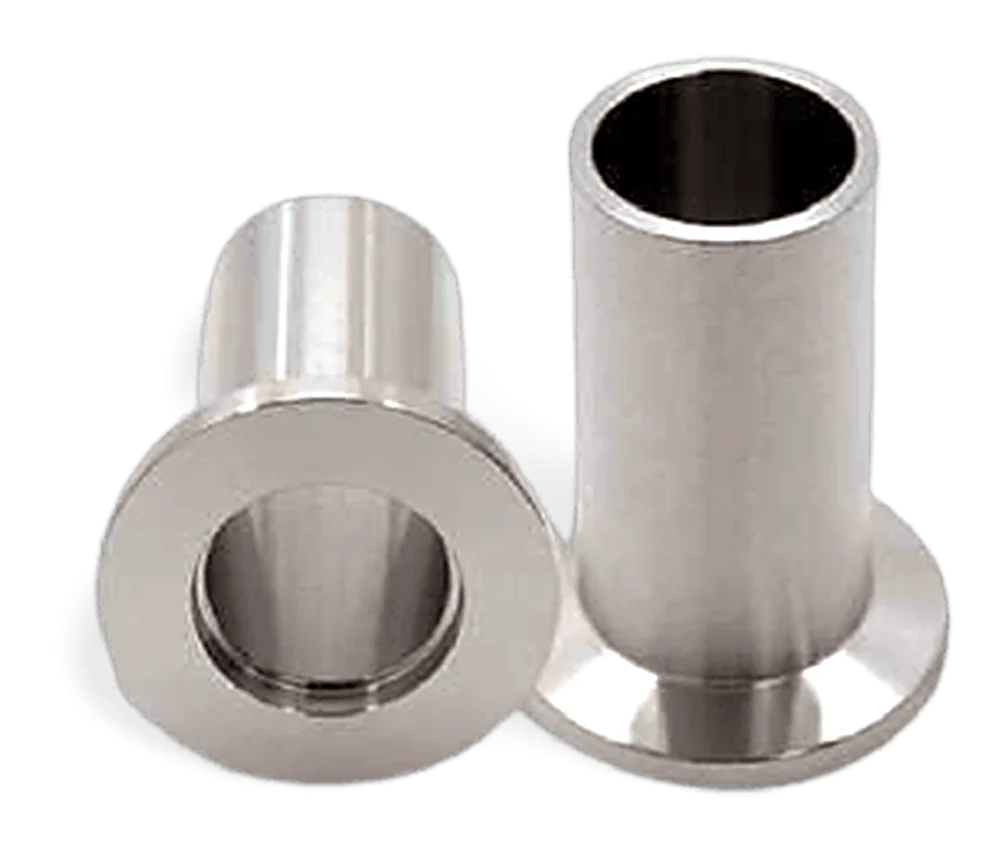

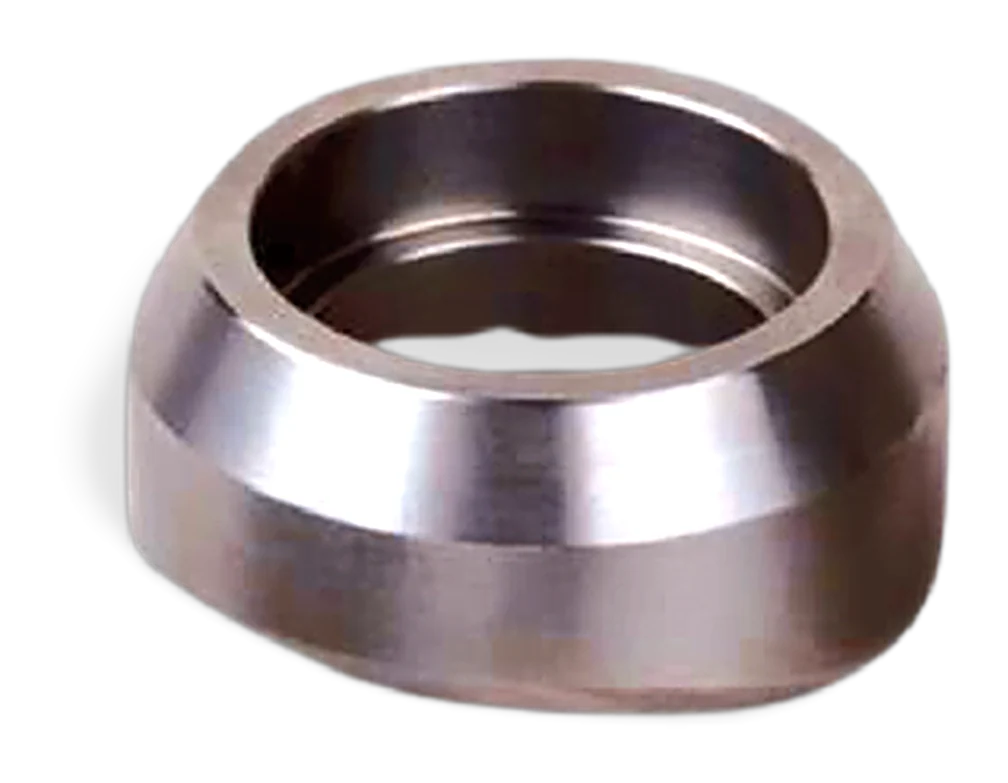

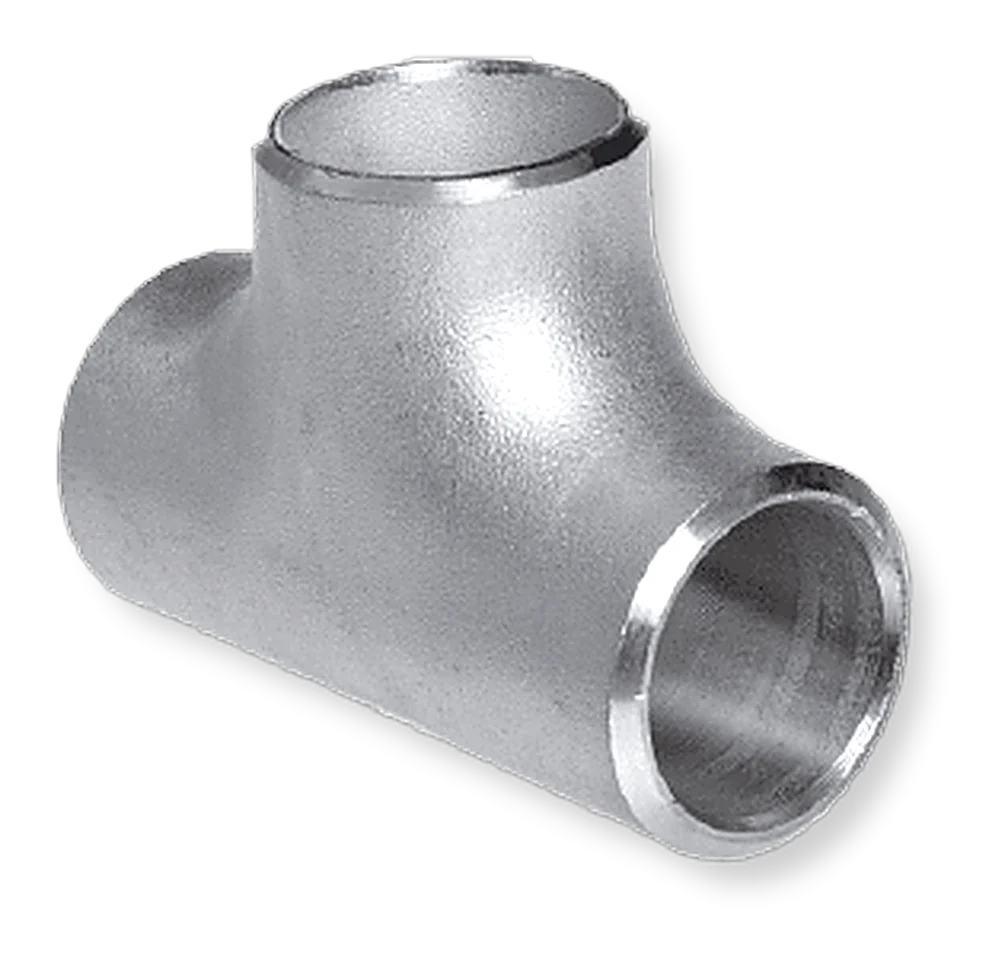

Yes. Teshi Group manufactures ASME B16.9 elbows, tees, reducers, caps and stub ends at its own units in India, and supplies MSS SP-97 branch outlets with them.
What is the difference between seamless and welded fittings?
Seamless fittings are formed from seamless pipe and are normally used up to 24 inch. Larger sizes, and many thin-wall stainless sizes, are formed from plate and welded. A403 class WX means the welds are 100% radiographed.
What do the letters A, B, C, M, H and E mean?
They are ASME B16.9 dimension symbols: A and B are elbow centre-to-end, C and M tee centre-to-end, H reducer length, E cap height. See the labelled diagrams.
Can fittings be supplied with matching flanges and pipe?
Yes. Flanges come from Teshi Fittings and pipe from Teshi Pipes, on one order with one set of certificates. Send the full BOQ to info@teshigroup.com.
Get a quotation from the manufacturer
Send your BOQ, drawing or tender reference. You deal directly with the manufacturer.
- Reply from our estimation team, usually within one working day
- Carbon steel to titanium on one order
- EN 10204 3.1 or 3.2 certificates, third-party inspection welcome
- ISO 9001:2015 certified and IBR approved, since 1971
Drawings and BOQ spreadsheets are easiest by email. Mention your project name.
