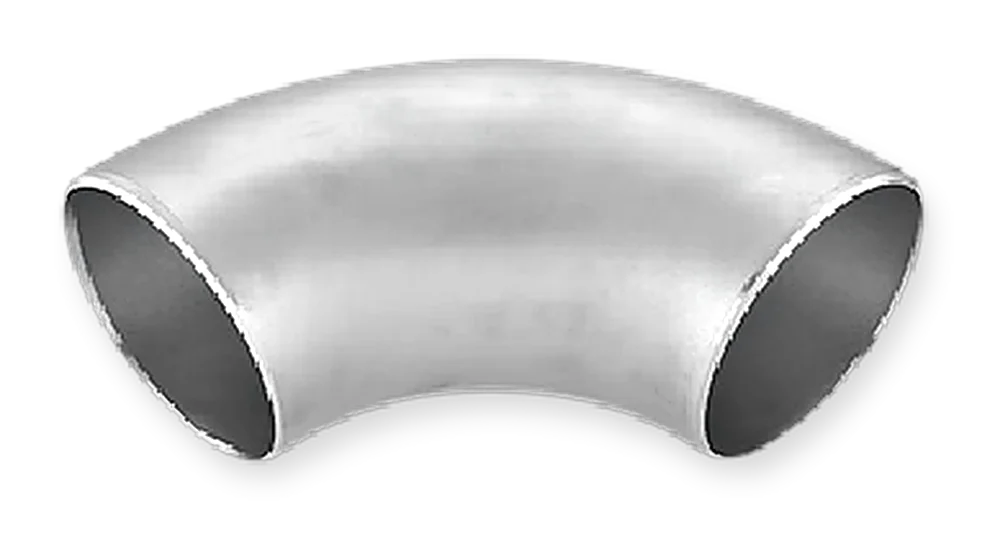

Elbows
90° and 45° long radius, 90° short radius, 180° returns and 3D/5D elbows to ASME B16.9, seamless and welded, ½ inch to 48 inch..
Nickel alloy, titanium and 904L fittings
Butt-weld fittings for acids, chlorides and severe service in super-austenitic, nickel alloy and titanium grades.
Grades and typical service
| Grade | Typical service |
|---|---|
| A403 WP904L | Sulphuric and phosphoric acid service |
| A403 WPS31254 (254 SMO) | Seawater and high chlorides |
| B366 WPNCMC (625) | Sour service, high temperature, pitting resistance |
| B366 WPNICMC (825) | Sulphuric acid, oxidising media |
| B366 WPHC276 | Mixed acids, wet chlorine, HCl |
| B366 WPNC (Monel 400) | HF acid, flowing seawater |
| B366 WP20CB (Alloy 20) | Sulphuric acid |
| B363 WPT2, WPT7, WPT12 | Seawater, chlorine and chlorides |
Fittings in these grades

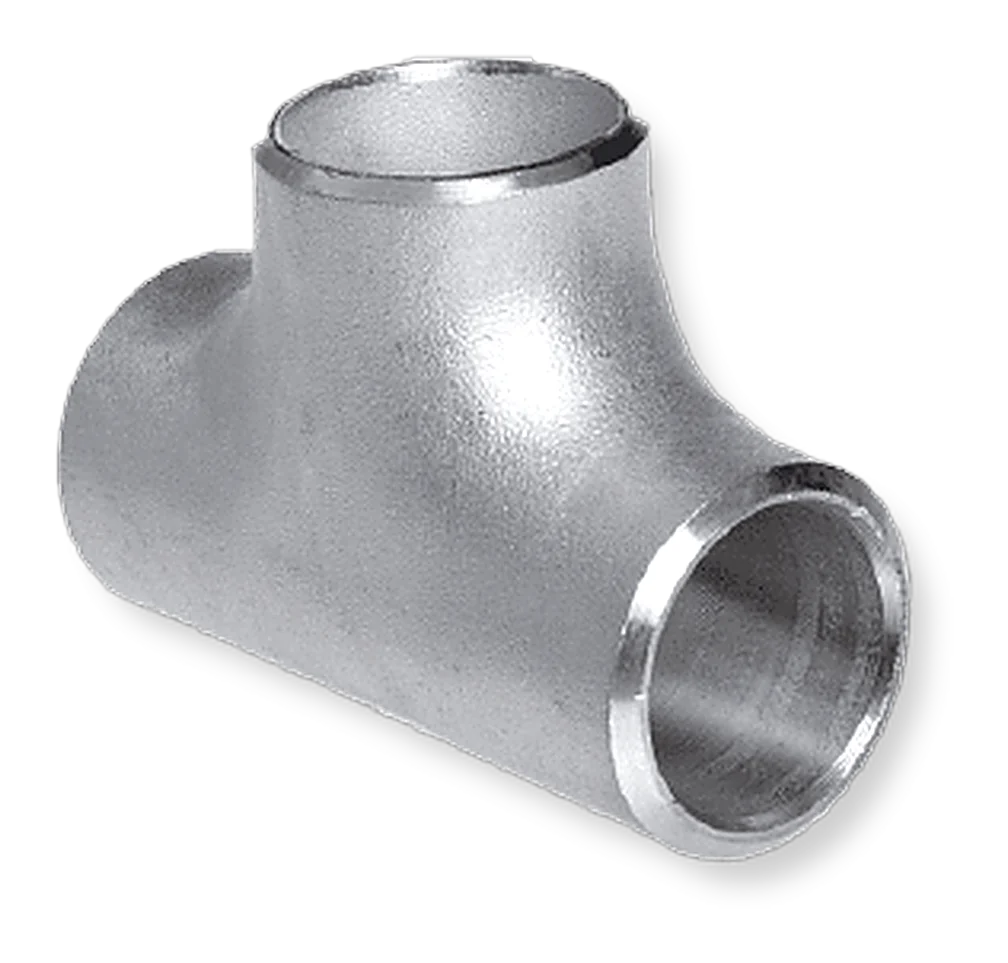

Tees
Equal tees, reducing tees and crosses to ASME B16.9 for branch connections, seamless or welded..
Get a price for nickel, titanium and 904l fittings
Send sizes, schedules and quantities for elbows, tees, reducers and caps.
Lap joints save cost
On these lines, consider stub ends with carbon steel backing flanges to cut the cost of solid alloy flanges.
Dimension finder
Fitting dimension finder
Choose a fitting and size. The letters on the drawing show exactly what each ASME B16.9 dimension measures.
Dimensions in mm per ASME B16.9 (short stub end per MSS SP-43).
Ends, marking, testing and packing
Ends and bevels
Bevelled to ASME B16.25, normally 37.5° ± 2.5° with a 1.6 mm root face, or to your weld-end detail. Wall thickness matched to the pipe schedule.
Marking
Each fitting is marked with Teshi mark, grade, size, schedule, heat number and standard, traceable to its material certificate.
Testing
- Dimensional and visual inspection
- PMI on alloy fittings
- RT of welded fittings (WX class), IGC for stainless
- Impact tests for WPL6 and WPHY
Finish and packing
Stainless and nickel alloys solution annealed, pickled and passivated. Carbon steel varnished or painted. Packed in wooden cases, seaworthy for export.
FAQ
Questions buyers ask
Do you weld titanium fittings in-house?
Welded titanium fittings are made with full inert-gas shielding, and the weld colour is checked as part of inspection.
